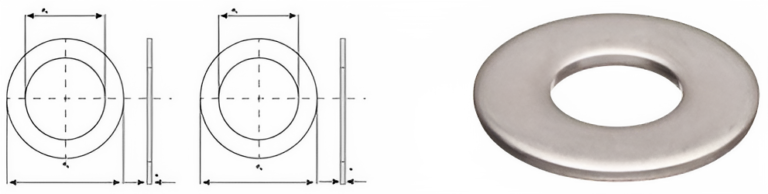

DIN 125 FLAT WASHER

69

Advantages

  • Provides even load distribution under fasteners

  • Protects surfaces from damage during tightening

  • Improves joint stability and alignment

  • Easy to install and remove

  • Cost effective and widely available

Applications

  • Used in construction and structural work

  • Suitable for machinery and equipment assembly

  • Applied in automotive applications

  • Used in electrical and mechanical fittings

  • Common in general industrial fastening systems

Send Enquiry

PRODUCT SPECIFICAITON

d1 Used for d2 s
1.1 M1 3 0.3
1.3 M1.2 3.5 0.3
1.5 M1.4 4 0.3
1.7 M1.6 4 0.3
1.8 M1.7 4.5 0.3
2.2 M2 5 0.3
2.7 M2.5 6 0.5
2.8 M2.6 7 0.5
3.2 M3 7 0.5
3.7 M3.5 8 0.5
4.3 M4 9 0.8
5.3 M5 10 1
6.4 M6 12 1.6
7.4 M7 14 1.6
8.4 M8 16 1.6
10.5 M10 20 2
13 M12 24 2.5
15 M14 28 2.5
17 M16 30 3
19 M18 34 3
21 M20 37 3
23 M22 39 3
25 M24 44 4
28 M27 50 4
31 M30 56 4
34 M33 60 5
37 M39 72 6
43 M42 45 7
46 M45 85 7
50 M48 92 8
54 M52 98 8
58 M56 105 9
62 M60 110 9
66 M64 115 9
70 M68 120 9
74 M72 125 10
78 M76 135 10
82 M80 140 12
87 M85 145 12
93 M90 160 12
104 M100 175 14
